LS5600 Main CPU

LS5600 Main CPU

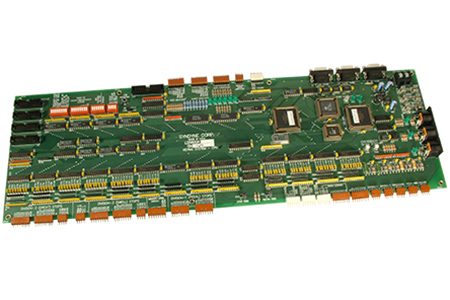

The 5600 main CPU board takes in the information from the majority of the console and converts it to a data stream that is sent to the chamber. The key contacts are wired to CS2402Ks which attach to the 2400 via ribbon cables. The stop senses and pistons are wired to pins directly on the LS5600K board. A control panel, crescendo-expression shoes, and other console controls can be connected to the LS5600K as well.

Dimensions

Length: 20-1/2"•Width: 7-1/8"•Height: 1-1/8"

Features

  • Central processing unit for the 5600 system
  • Standardized software can be easily repaired or replaced in the field
  • Boards can be easily configured by the organ builder in the field
  • Controls up to 3 divisions
  • Controls two manuals with 20 stops in each
  • Controls 16 stops in the pedal
  • Two tremolo control inputs
  • Two accessory outputs
  • Two utility reversible outputs (zymbelsterns, lamps, blower motor start, etc.)
  • Two on board programmable crescendos
  • Two on board programmable sforzandos (tuttis)
  • 12 step on board transposer settable on general pistons and memory levels
  • 2 selectable auto pedal features
  • Programmable Couplers
  • Non-coupling stops
  • Expression couplers
  • Full MIDI capabilities
  • 16 MIDI stops can be set on any division(s)
  • MIDI volume, pitch, and expression control
  • MIDI-In, MIDI-Out, and MIDI-Thru
