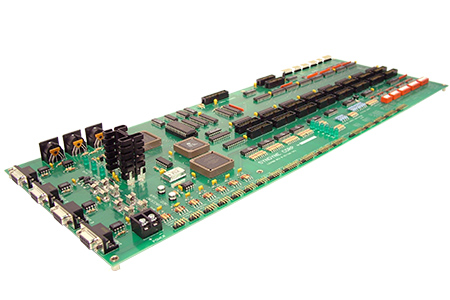

LS2400K 2400 Main CPU

LS2400K 2400 Main CPU

The 2400 main CPU board takes in the information from the majority of the console and converts it to a data stream that is sent to the chamber. The key contacts, stop senses, and general pistons, are wired to separate input boards which attach to the 2400 via ribbon cables. A control panel, crescendo-expression shoes, and other console controls can be connected to the LS2400K as well.

Dimensions

Length: 21-5/8"•Width: 8-1/8"•Height: 2"

Features

  • Central processing unit for the 2400 system
  • Standardized software can be easily repaired or replaced in the field
  • Boards can be easily configured by the organ builder in the field
  • Controls up to 8 divisions
  • Controls up to 48 stops in each division
  • Exchange great and choir manuals with reversible piston or coupler
  • Four tremolo control inputs
  • Two accessory outputs
  • Two utility reversible outputs (zymbelsterns, lamps, blower motor start, etc.)
  • Two on board programmable crescendos
  • Two on board programmable sforzandos (tuttis)
  • Two on board programmable ventils
  • 12 step on board transposer settable on general pistons and memory levels
  • 2 selectable auto pedal features
  • Programmable Couplers
  • Non-coupling stops
  • Expression couplers
  • Full MIDI capabilities
  • 16 MIDI stops can be set on any division(s)
  • MIDI volume, pitch, and expression control
  • MIDI-In, MIDI-Out, and MIDI-Thru
